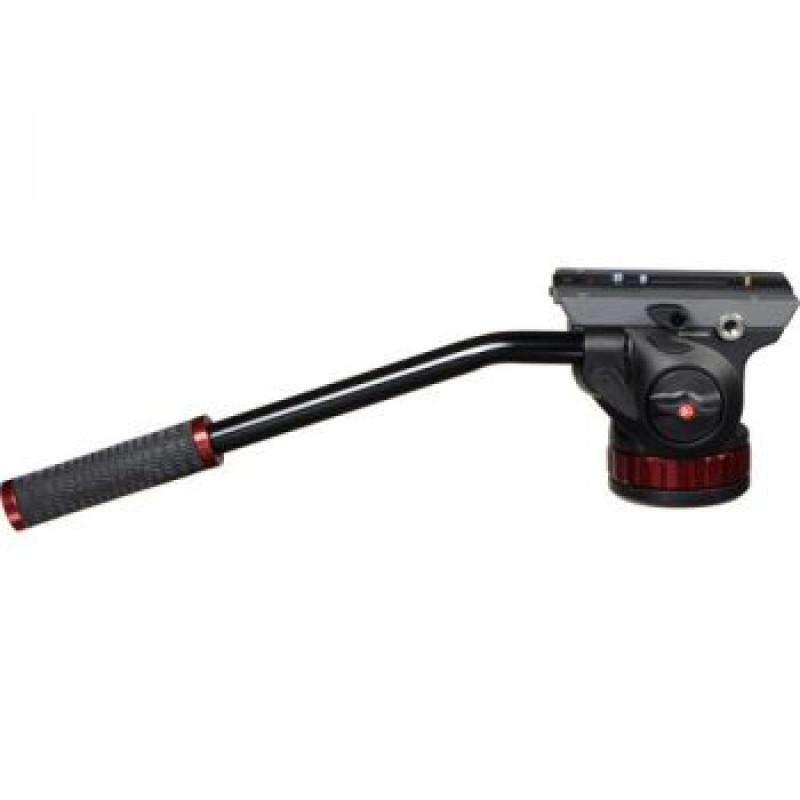

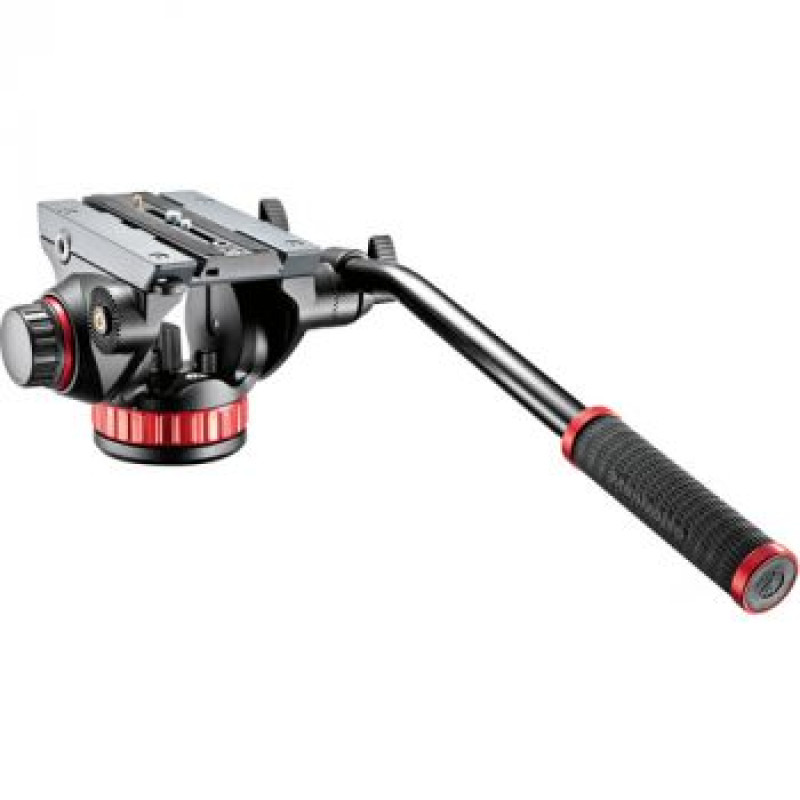

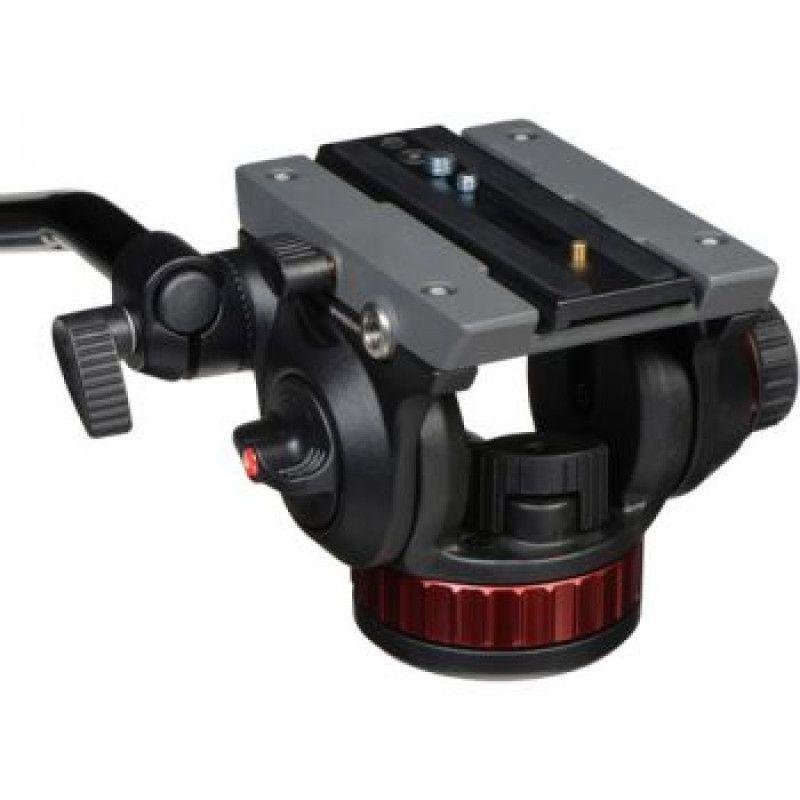

Manfrotto 502HD Pro Video Head with Flat Base (3/8"-16 Connection)

Supports 8.8 lb
Bridging Technology
Spring-Loaded Counter Balance
Continuously Adjustable Pan/Tilt Drag
Pan Bar & Sliding Plate Included

The Manfrotto 502HD Pro Video Head with Flat Base (3/8"-16 Connection) is an affordable yet remarkably full-featured professional head that represents an advance over the popular 501HDV, with sturdier construction and featuring Manfrotto's patented bridging technology (inherited from the 509HD and 504HD heads). The 502HD is designed for executing cinematic moves with compact camcorders and DSLR video cameras.
The head supports up to 8.8 lb, and spring-loaded counter balance is set for that weight. The balance plate's 3.27" range allows you to correct for uneven payloads that might be due to matte boxes or exotic DSLR rig configurations.
The bridging technology ensures that the pan friction control is intuitive and easy to set, but also protected against knocks. There are of course independent locks for pan and tilt, and drag for both is selectable in a continuous range from zero to the max level. This allows you to operate the head in a confident, smooth manner using the included pan bar.
Pan drag and tilt drag are continuously adjustable from 0 (no drag) to the maximum level
Sliding quick-release place secured by secondary safety system

More information
Load Capacity: 8.8 lb (4 kg)
Quick Release: 504PLONG plate with 1/4"-20 & 3/8"-16 screws
Weight: 3.53 lb (1.6 kg)
Bubble Level: Yes
Balance Plate: 504PLONG plate slides 3.27" (83.0 mm)
Tilt Drag: Continuously adjustable from 0 to max level
Tilt Range: -80° to +90° tilt range front to back
Tilt Lock: Yes
Pan Range: 360°
Pan Lock: Yes
Diameter: 3/8"-16 thread

Box contents
Manfrotto 502HD Pro Video Head with Flat Base (3/8"-16 Connection) Pan Bar 504PLONG Long Quick-Release Mounting Plate
