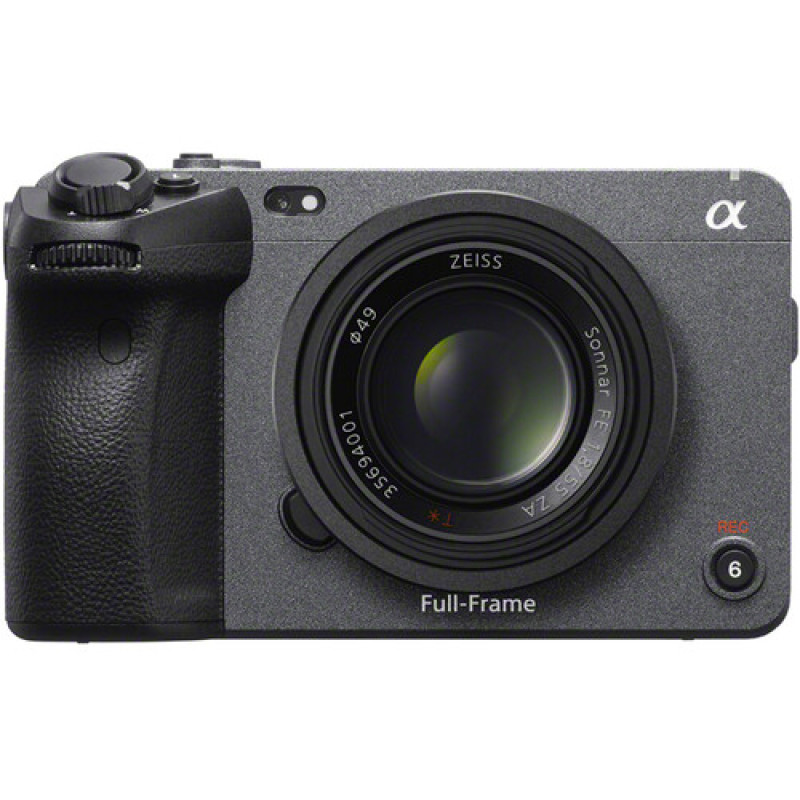

Sony FX3A Full-Frame Cinema Camera

Key Features

12.1MP Full-Frame CMOS Exmor R Sensor

UHD 4K up to 120 | 1080p up to 240

Compact Form for Cage-Free Operation

10-Bit 4:2:2 XAVC S-I,16-Bit Raw Output

S-Cinetone/S-Log3/HLG, 15+ Stops DR

Detachable Dual XLR/TRS Adapter Handle

Phase Detection AF/Face Tracking/Eye AF

80 to 409,600 Expanded ISO Range

Dual CFexpress Type A/SDXC Card Slots

Cinematic Capture in a Compact, Streamlined Form

With a compact design for solo shooters, travel applications, or as an ideal B camera, the Sony FX3A borrows from both the Cinema Line and Alpha series of cameras to create an optimized portable cinema camera. The FX3A features all the imaging attributes you'd expect from this class but sports a new lightweight, handheld form with a streamlined profile and a "cage-free" design, offering the ability to secure various accessories directly to the camera body.

Expressive UHD 4K Video Capture

The FX3A's 12.1MP Exmor R BSI CMOS sensor (10.2MP effective in video mode) is paired with a BIONZ XR processor to achieve UHD 4K video capture with internal 10-bit 4:2:2 sampling or 16-bit raw output. The sensor's BSI design heightens clarity and sensitivity, with an expandable ISO 80-409,600 range and a greater-than-15-stop dynamic range for working in mixed lighting conditions. Benefiting color and tonal control, the S-Cinetone mode can be used for matching to VENICE, FX9, or FX6 sources, and there is also S-Log3/2 gamut support and 10-bit HLG for simple HDR productions. The sensor and processor also work together to greatly reduce rolling shutter, and the sensor's design incorporates a Fast Hybrid AF system for intelligent and quick focusing performance and subject tracking.

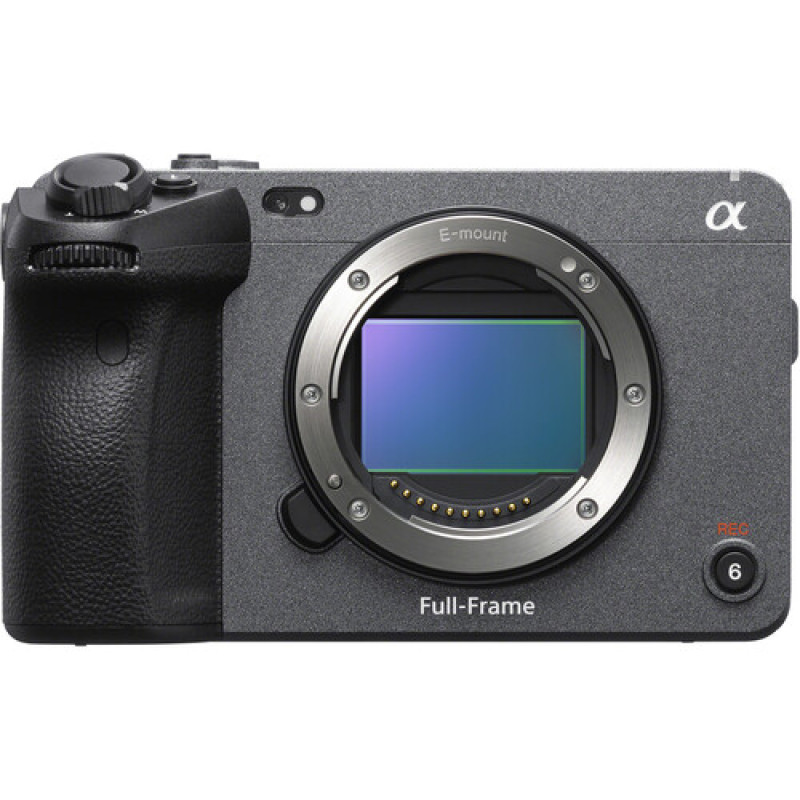

4K Full-Frame CMOS Exmor R Sensor

A 12.1MP Exmor R sensor and BIONZ XR processor offer the FX3A true cinematic expression with 10.2MP effective video and 12.1MP still capture. The full-frame sensor provides shallow depth of field looks, impressive bokeh, and reduced rolling shutter artifacts. A base sensitivity of 80-102,400 expands to a lofty 409,600 for impressive low-light capture, and 15+ stops of dynamic range reproduce the nuances of both spectacular exteriors and carefully lit interior scenes with plenty of allowance for color grading.

S-Cinetone Color

Beautiful skin tone reproduction and a softer-toned look that complements your VENICE, FX9, or FX6 footage are created using the FX3A's default S-Cinetone color setting. S-Log-3, S-Gamut3, S-Gamut3.Cine, and 10-bit 4:2:2 support help maintain rich gradation and color matching with the range of Sony Cinema Line cameras, while HLG HDR provides the option of direct HLG playback without the need for grading.

Video Recording

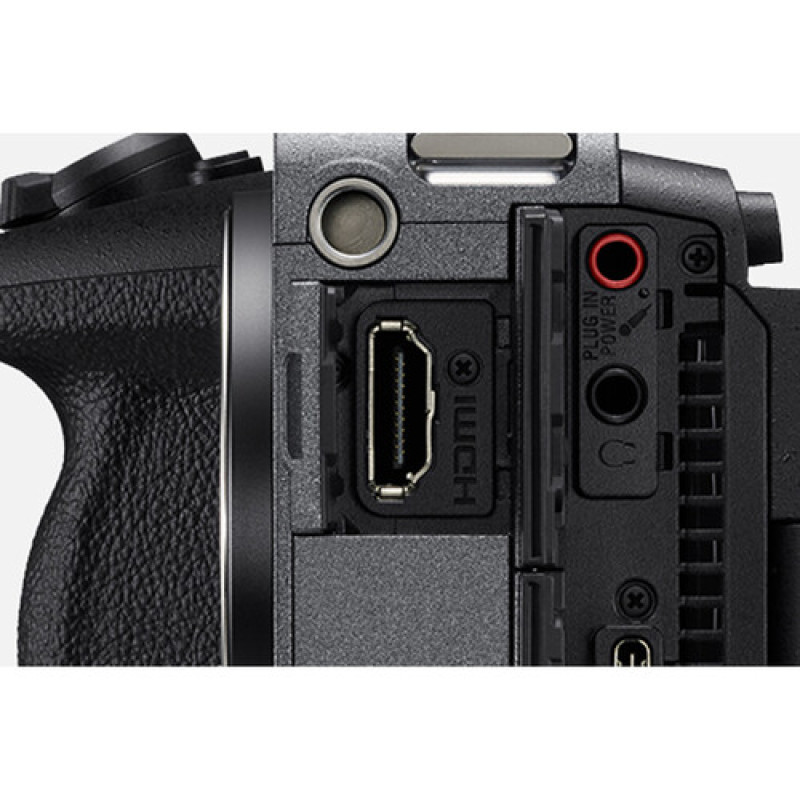

Capture sharp, detailed images at rates up to 4K 120p with up to 5x slow motion at 24p output. Recording options include the ability to output DCI 4K+ in 16-bit raw over HDMI to compatible recorders while simultaneously recording XAVC 4K and proxies in-camera. Internal 4K recording options include 4:2:2 10-bit color with All-Intra and Long GOP codecs.

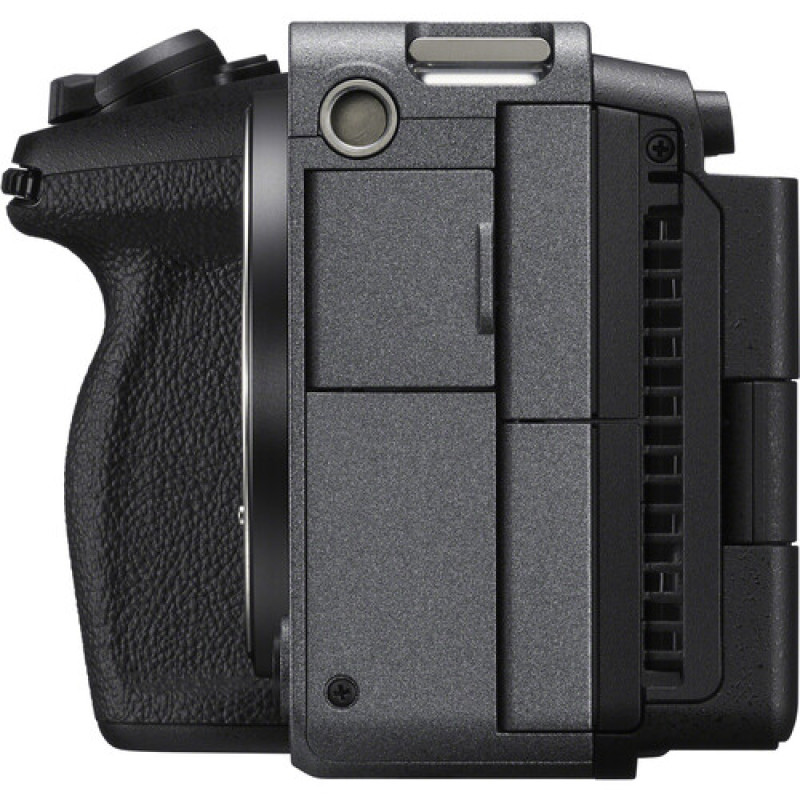

Cooling features like a silent fan and a heatsink dissipate warmth to enable uninterrupted recording up to 4K60

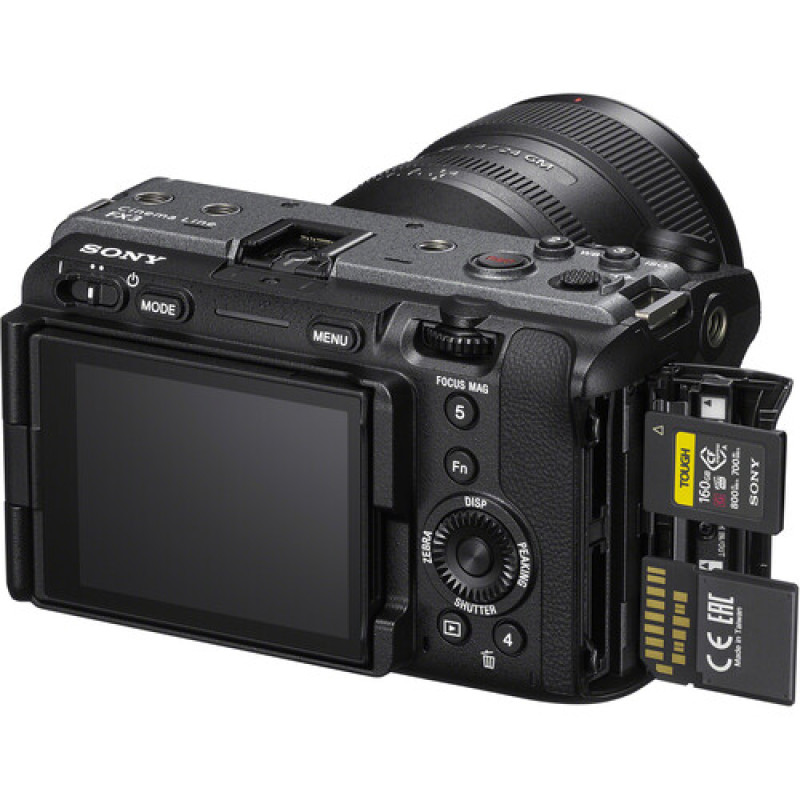

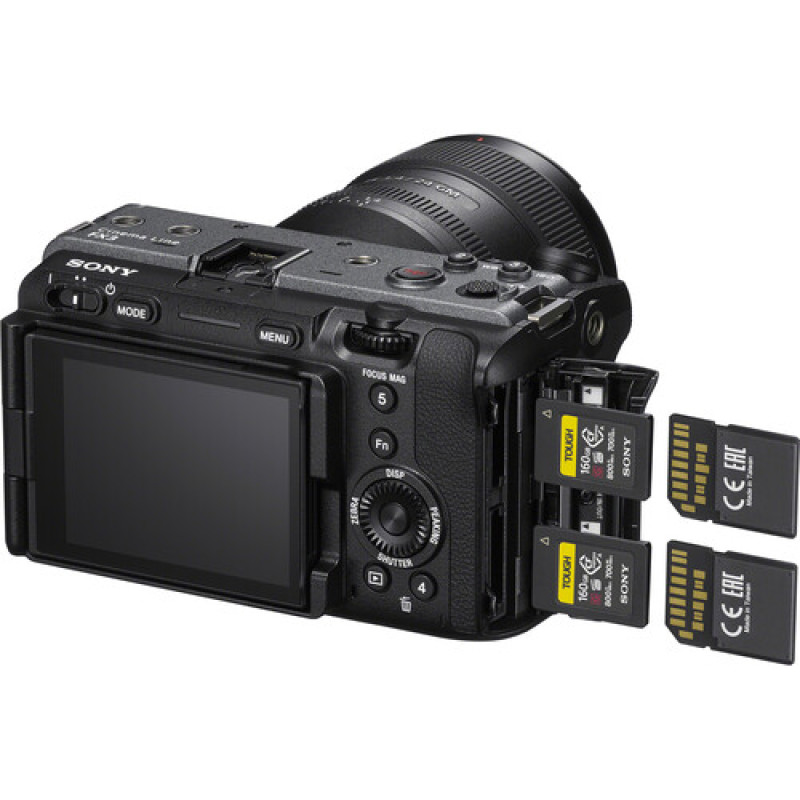

Dual SD card slots accept both CFexpress Type A and SDXC cards for easy relay or backup recording

Super 35 1080p capture at rates up to 240p

Steady Focus

Now, even solo shooters can keep the action in focus thanks to real-time Tracking and Eye autofocus functions made possible by AI-based algorithms, plus a simple touchscreen focus function.

Seven choices of AF Transition Speed let you rack focus, and five AF Subject Shift settings enable you to adjust the speed when shifting from a locked-on subject.

Fast Hybrid AF uses 627 points to cover approximately 89% of the image frame.

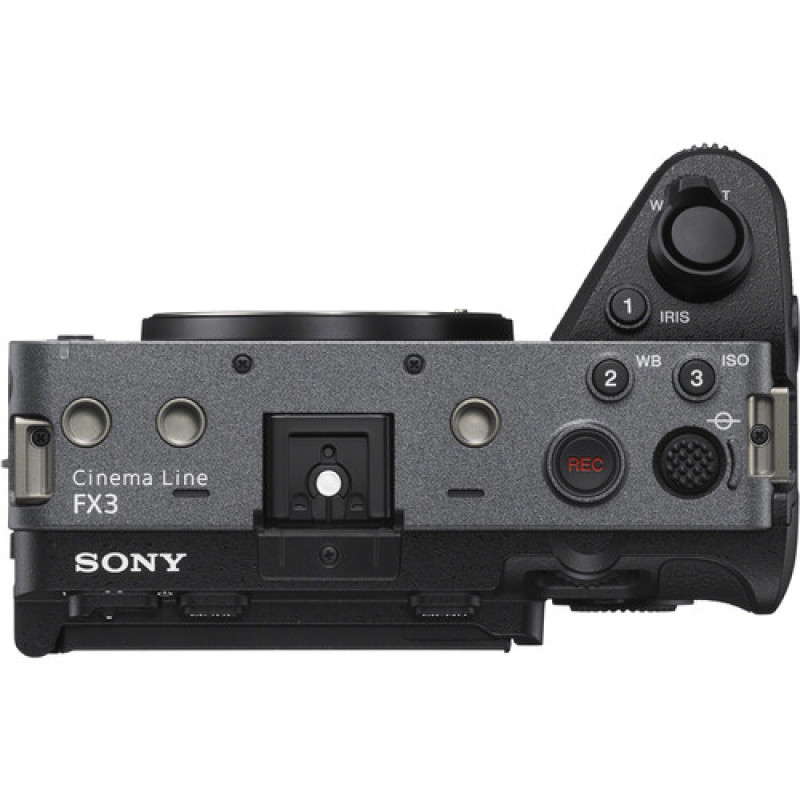

Ergonomic Form for Solo Operation

The FX3A's cage-free design enables you to mount ¼"-20 compatible accessories directly on the camera or the detachable handle, saving you the weight and setup/breakdown time of a camera cage. The clustered record button, focus and menu controls, and six assignable buttons all help to enable single-handed control, leaving your left hand free for balancing or controlling your lens.

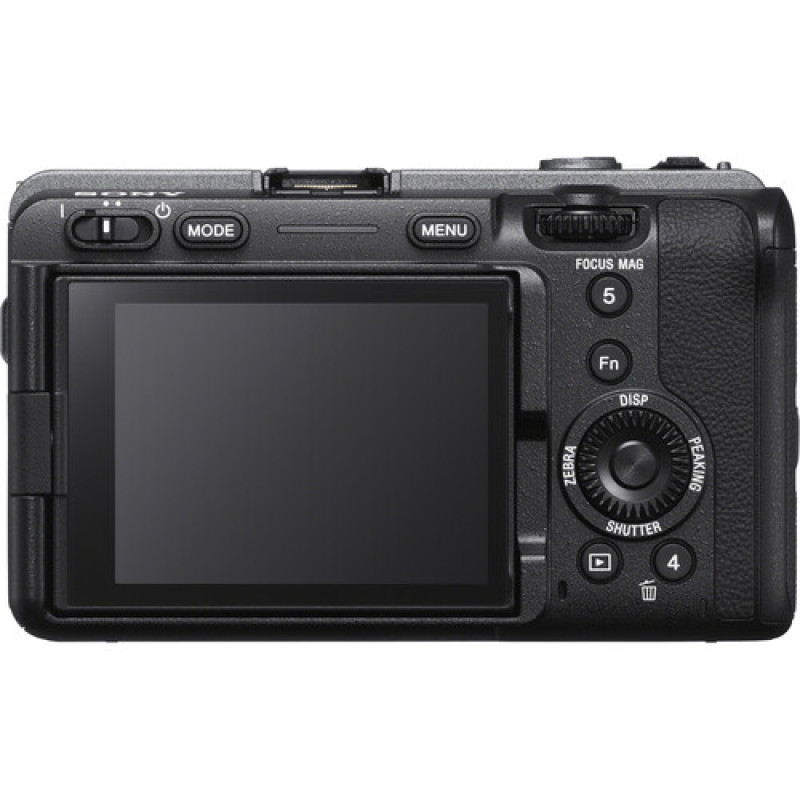

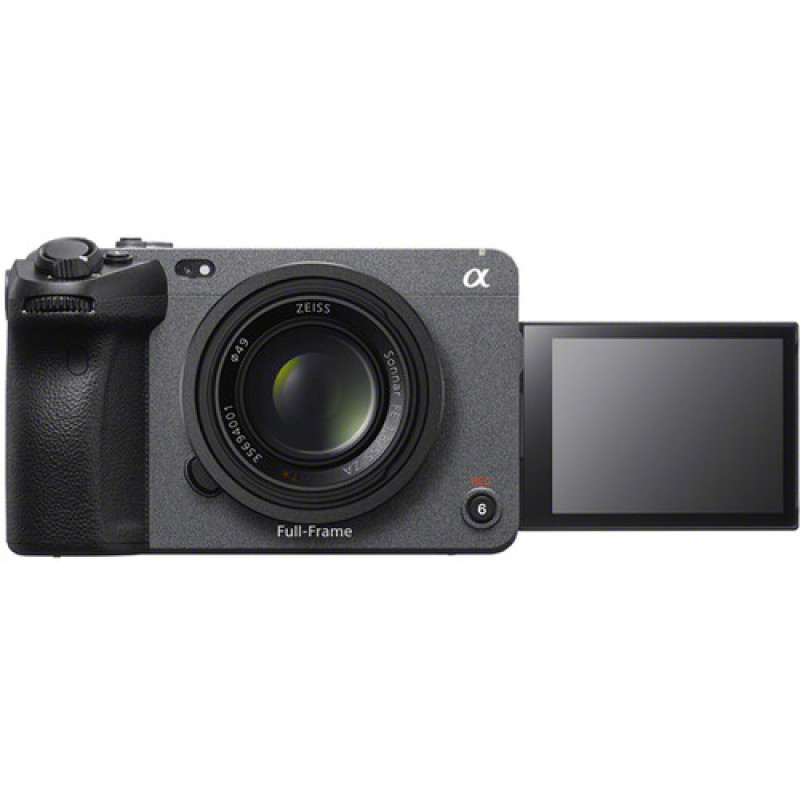

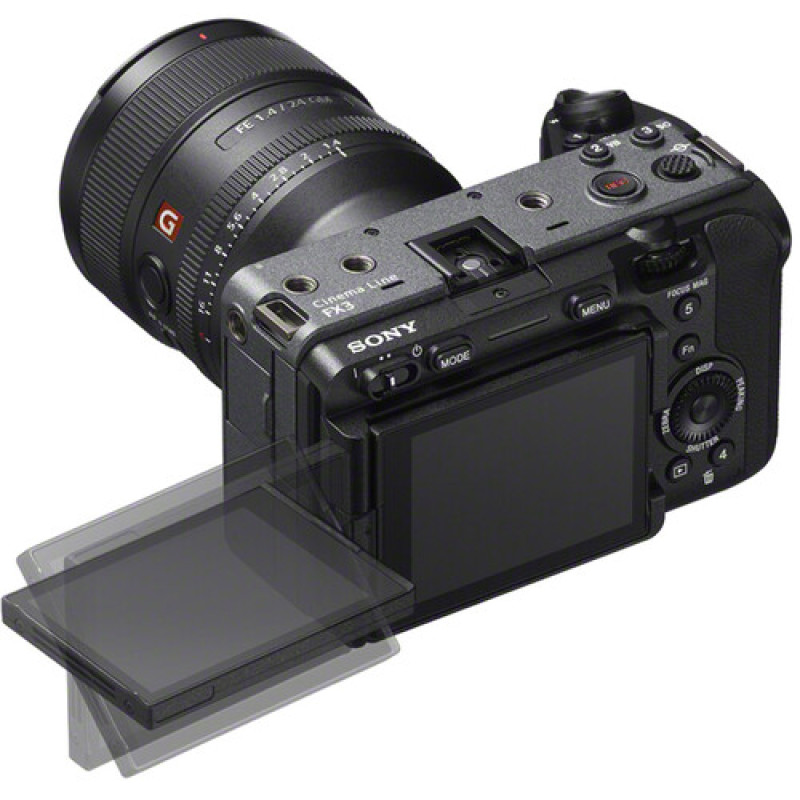

Tilting Touchscreen LCD

The fold-out 3" touchscreen LCD has a crisp 2.35MP resolution and can be variously angled for optimal viewing.

Easily Viewable Tally Lights

Top, front, and rear tally indicators let the operator, talent, and sound person know precisely when the camera is recording.

This enables more accurately timed movements and dialogue delivery.

Quality Audio Options

Pro audio recording options include:

A detachable XLR adapter handle with two XLR-1/4" TRS combo audio inputs

A mic holder and a 3.5mm input for adding a microphone

Up to 4-channel, 24-bit audio recording

Remote Control, Streaming, and Transfers

Control your FX3A remotely using the Imaging Edge Mobile or Imaging Edge Desktop apps, and transfer files using Wi-Fi or via a wired USB-C connector to let your editor get a jump on post-production.

You can also stream your content using your computer and the Imaging Edge Webcam app.

Post-Production Stabilization with E-Mount Lenses

Sony's Catalyst Prepare/Browse software uses shake metadata to stabilize your image

An adjustable balance between shake compensation and image area trimming lets you fine-tune the image

Improved FX3A Features

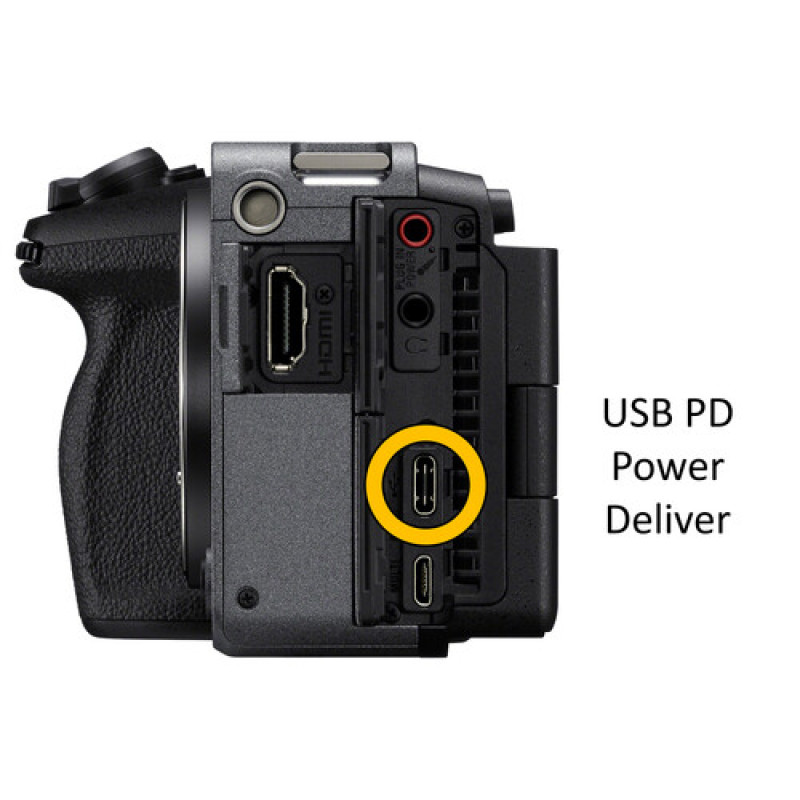

The FX3A updates the Cinema Line with improvements like comfortable, cage-free handheld operation, a battery runtime 1.6x longer than that of the a7S II, and a USB-PD power option for extended shooting times.

Common FX3A/FX6/a7S III Features

Like the FX6 and the a7S III, the FX3A features:

Full-frame, back-illuminated 12.1MP Exmor R CMOS sensor and BIONZ XR processor

High-speed rates of 120p in 4K and 240p in HD

A dynamic range of 15+ stops

Shared FX3A/FX6 Attributes

Attributes that the FX3A has in common with the larger FX6 camera include:

S-Cinetone, S-Log3, HLG, and Rec. 709 gamma options

Tally lamps on the front, side, and rear

An internal fan to prevent overheating

A zoom lever for easy frame adjustments

Shared FX3A/a7S III Attributes

Attributes that the FX3A shares with the a7S III include:

5-axis in-body image stabilization

16-bit raw output via HDMI

S-Log2 gamma choice

80 to 409,600 ISO range (expanded)

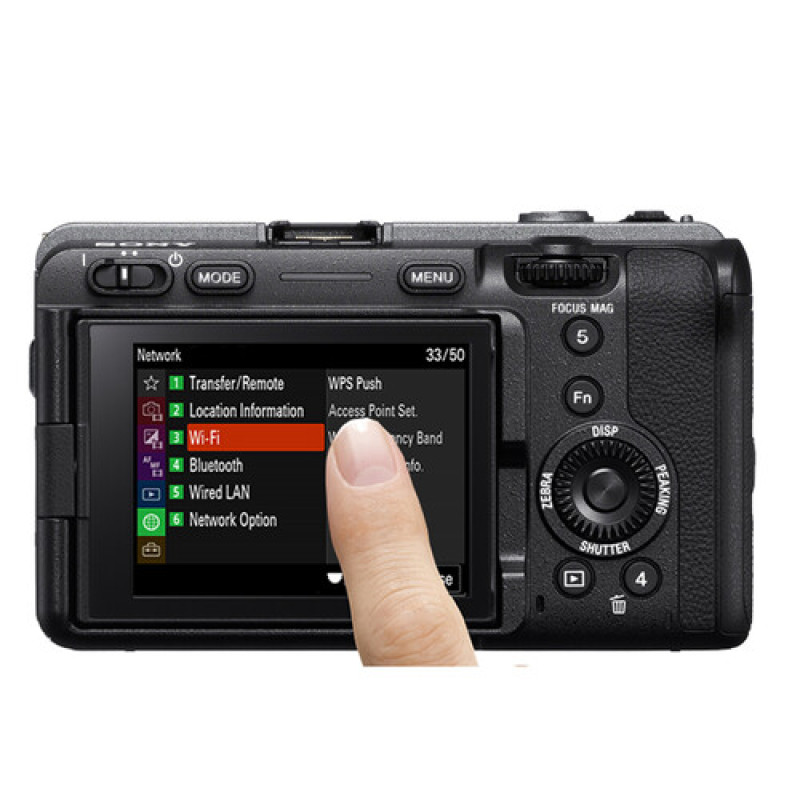

Wireless Connectivity

Dual-band 2.4/5 GHz wireless connectivity

Wired LAN link using the USB-C port and a separate adapter

المواصفات

Lens Mount

Sony E

Sensor Resolution

Actual: 12.1 Megapixel

Effective: 10.2 Megapixel

Image Sensor

35.6 x 23.8 mm (Full-Frame) CMOS

Image Stabilization

Sensor-Shift, 5-Axis

ISO/Gain Sensitivity

Native: 80 to 102,400 (80 to 409,600 Extended)

Internal Recording

H.265 Long GOP/XAVC HS 4:2:2 10-Bit

UHD 4K (3840 x 2160) at 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120 fps [50 to 280 Mb/s]

H.265 Long GOP/XAVC HS 4:2:0 10-Bit

3840 x 2160 at 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120 fps [30 to 150 Mb/s]

MPEG-4 AVC/XAVC S 4:2:2 10-Bit

3840 x 2160 at 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120 fps [100 to 280 Mb/s]

1920 x 1080p at 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120/200/240 fps [50 Mb/s]

MPEG-4 AVC/XAVC S-I 4:2:2 10-Bit

4096 x 2160 at 1/2/3/6/12/23.98/24.00/29.97/48.00/59.94 fps

UHD 4K (3840 x 2160) at 1/2/3/4/6/8/12/15/23.98/25/29.97/59.94/100/120 fps [240 to 600 Mb/s]

1920 x 1080p at 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120/200/240 fps [89 to 222 Mb/s]

MPEG-4 AVC/XAVC S 4:2:0 8-Bit

3840 x 2160 at 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120 fps [60 to 200 Mb/s]

1920 x 1080p at 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120/200/240 fps [16 to 100 Mb/s]

XAVC Proxy

1920 x 1080 [9 to 16 Mb/s]

1280 x 720 [6 Mb/s]

Show More

Video Output

Raw 16-Bit via HDMI

4264 x 2408 at 23.98/25/50/59.94 fps

3840 x 2160 at 23.98/25/50/59.94 fps

1920 x 1080p at 23.98/25/50/59.94 fps

1920 x 1080i at 50/59.94 fps

Show More

Media/Memory Card Slot

Dual Slot: CFexpress Type A / SD

Video I/O

1 x HDMI (Unspecified Signal) Input

Mobile App Compatible

Yes: Android & iOS

App Name: Creators' App

Battery Type

NP-FZ100

Imaging

Lens Mount

Sony E

Lens Communication

Yes: with Autofocus Support

Sensor Resolution

Actual: 12.1 Megapixel

Effective: 10.2 Megapixel

Image Sensor

35.6 x 23.8 mm (Full-Frame) CMOS

Image Stabilization

Sensor-Shift, 5-Axis

Built-In ND Filter

No

Internal Filter Holder

No

Capture Type

Stills & Video

Exposure Control

Shutter Type

Mechanical Focal Plane Shutter and Electronic Rolling Shutter

Shutter Speed

1/8000 to 1/4 Second

ISO/Gain Sensitivity

Native: 80 to 102,400 (80 to 409,600 Extended)

Advertised Dynamic Range

15 Stops

White Balance

Range: 2500 to 9900K

Presets: Auto, Cloudy, Daylight, Flash, Fluorescent, Incandescent, Shade, Underwater

Video Capture

Internal Recording

H.265 Long GOP/XAVC HS 4:2:2 10-Bit

UHD 4K (3840 x 2160) at 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120 fps [50 to 280 Mb/s]

H.265 Long GOP/XAVC HS 4:2:0 10-Bit

3840 x 2160 at 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120 fps [30 to 150 Mb/s]

MPEG-4 AVC/XAVC S 4:2:2 10-Bit

3840 x 2160 at 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120 fps [100 to 280 Mb/s]

1920 x 1080p at 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120/200/240 fps [50 Mb/s]

MPEG-4 AVC/XAVC S-I 4:2:2 10-Bit

4096 x 2160 at 1/2/3/6/12/23.98/24.00/29.97/48.00/59.94 fps

UHD 4K (3840 x 2160) at 1/2/3/4/6/8/12/15/23.98/25/29.97/59.94/100/120 fps [240 to 600 Mb/s]

1920 x 1080p at 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120/200/240 fps [89 to 222 Mb/s]

MPEG-4 AVC/XAVC S 4:2:0 8-Bit

3840 x 2160 at 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120 fps [60 to 200 Mb/s]

1920 x 1080p at 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120/200/240 fps [16 to 100 Mb/s]

XAVC Proxy

1920 x 1080 [9 to 16 Mb/s]

1280 x 720 [6 Mb/s]

Video Output

Raw 16-Bit via HDMI

4264 x 2408 at 23.98/25/50/59.94 fps

3840 x 2160 at 23.98/25/50/59.94 fps

1920 x 1080p at 23.98/25/50/59.94 fps

1920 x 1080i at 50/59.94 fps

Fast-/Slow-Motion Support

Yes

Gamma Curve

HDR-HLG, S Cinetone, Sony S-Log 2, Sony S-Log 3, Standard

Built-In Microphone

Stereo

Audio Recording

4-Channel 24-Bit LPCM Audio

2-Channel 24-Bit LPCM Audio

IP Streaming

No

Interface

Media/Memory Card Slot

Dual Slot: CFexpress Type A / SD

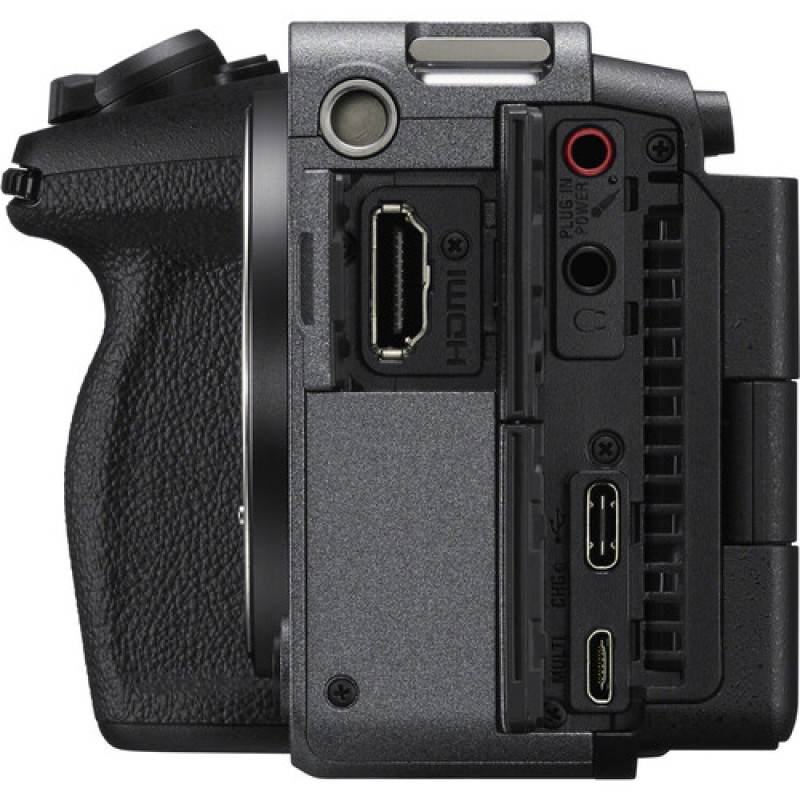

Video I/O

1 x HDMI (Unspecified Signal) Input

Audio I/O

1x 1/8" / 3.5 mm TRS Stereo Microphone Input

1x 1/8" / 3.5 mm TRS Stereo Headphone Output

Power I/O

1x USB-C Input

Other I/O

1x Micro-USB

Wireless

2.4 / 5 GHz Wi-Fi 5 (802.11ac), Bluetooth

Mobile App Compatible

Yes: Android & iOS

App Name: Creators' App

Global Positioning (GPS, GLONASS, etc.)

No

Monitor

Display Type

Primary Monitor: 180° Tilting 3" Touchscreen LCD

Resolution

Primary Monitor: 2,350,000 Dot

Viewfinder

Type

Optional, Not Included

Focus

Focus Mode

Automatic, Continuous-Servo AF, Direct Manual Focus, Manual Focus

Autofocus Points

Phase Detection: 627

Power

Battery Type

NP-FZ100

Power Consumption

7.3 W

Environmental

Operating Conditions

32 to 104°F / 0 to 40°C

Storage Conditions

-4 to 140°F / -20 to 60°C

General

Shoe Mount

1x Intelligent Hot Shoe

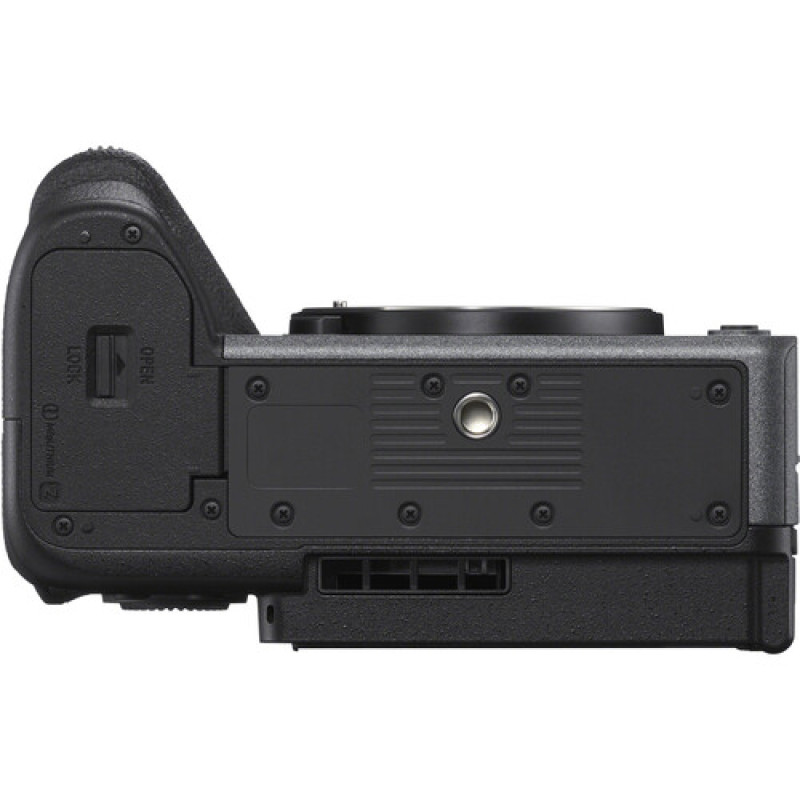

Tripod Mounting Thread

1/4"-20 Female

Accessory Mounting Thread

5x 1/4"-20 on Camera Body

3x 1/4"-20 on Included Handle

Netflix Approved

Yes

Material of Construction

Magnesium Alloy

Dimensions (W x H x D)

5.1 x 3.3 x 3.1" / 129.7 x 84.5 x 77.8 mm

Weight

1.4 lb / 640 g (Body Only)

1.6 lb / 715 g (With Battery, Recording Media)

Packaging Info

Package Weight

3.665 lb

Box Dimensions (LxWxH)

9.6 x 9 x 5.9"
